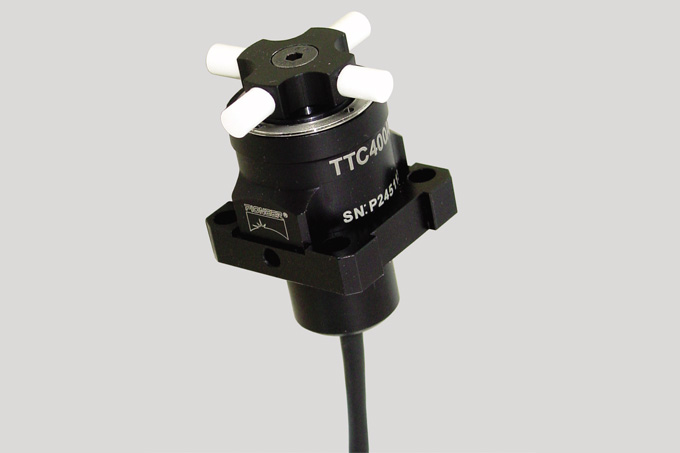

TTC400A cable tool setter unit is a product specially developed by our company for replacing some vulnerable tool setting units that is part of the swing-arm for setting the cutting tool in the CNC lathes. It is suitable for various specifications of CNC lathe, turning machine center and CNC milling -turning center.

Parameter of TTC400A Cable Tool Setter Unit

Drawing of TTC400A Cable Tool Setter Unit

Application of TTC400A Cable Tool Setter Unit

• TTC400A used with a high-precision motorized tool setting arm, which can realize in-sequence tool setting and tool breakage detection without operator intervention.

• For tool measuring and broken tool detection on 2-axis and 3-axis CNC lathes.

• Replacement of some vulnerable tool setting units.

Technical Characteristics of TTC400A Cable Tool Setter Unit

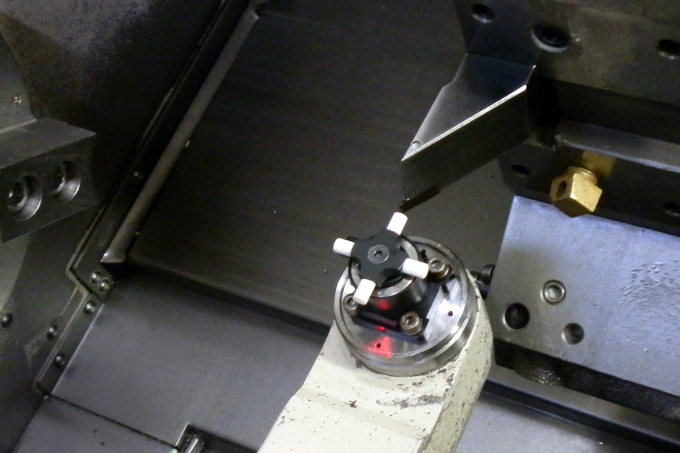

• As shown in the picture, the installing structure and size of the tool setter unit are exactly the same as the replacement;

• Tool setter unit transmits tool setting signal through cable;

• It is ensured during manufacturing that the position relationship between four pillars of the tool setter unit and mounting base;

• One LED indicator light is used to display the tool setter’s working state.

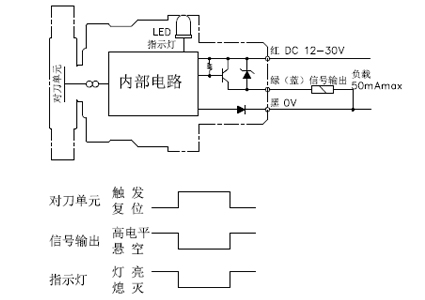

• Signal model and LED instruction: high electric level output with normal signal state, LED normally on; When any one pillar is triggered, the signal output point is suspended and the LED is off;
