TTC200 Cable Tool Setter System

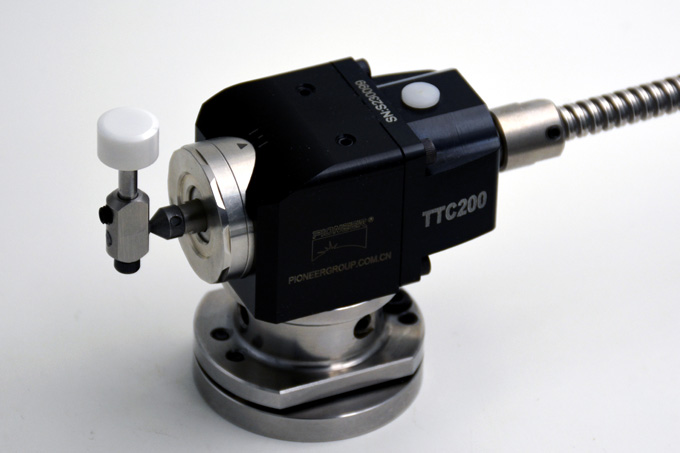

TTC200 cable tool setter system includes a tool setter unit,blow-cleaning device(optional), and standard measuring software. TTC200 tool setter with hard-wired signal transmission used for broken tool detection and rapid measurement of tool length and diameter on a wide range of tools.


If you are interested in diy cnc tool height setter, please contact us for tool height setter and tool height presetter!

  • TTC200 Cable Tool Setter System
  • TTC200 Cable Tool Setter System
  • TTC200 Cable Tool Setter System
  • TTC200 Cable Tool Setter System

TTC200 cable tool setter system includes a tool setter unit,blow-cleaning device(optional), and standard measuring software. TTC200 tool setter with hard-wired signal transmission used for broken tool detection and rapid measurement of tool length and diameter on a wide range of tools.


If you are interested in diy cnc tool height setter, please contact us for tool height setter and tool height presetter!

Parameter of TTC200 CNC Tool Height Setter System


TTC200:


Measuring direction

±X, ±Y, -Z

Repeatability (2σ)

≤ 2 μm;

Diameter of the touching face

12.7±0.005mm

Hardness of the touch face

HM8.5

Input voltage

24±10% VDC

Output load current

50 mA

Seal grade

IP68

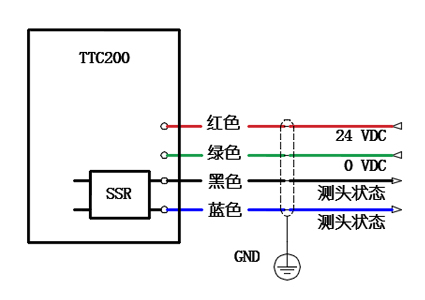

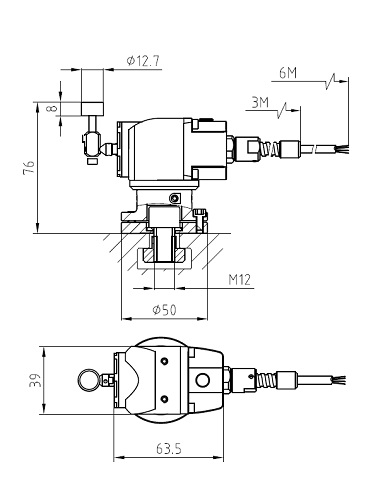

Drawing of TTC200 CNC Tool Height Setter System


TTC200 Cable Tool Setter SystemTTC200 Cable Tool Setter System


Application of TTC200 CNC Tool Height Setter System

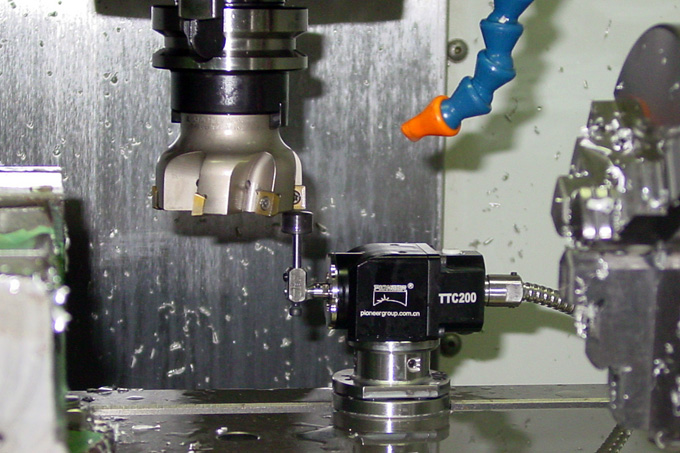

  • For tool measuring and broken tool detection on all sizes of vertical and horizontal machining centers and all gantry machining centers.

  • Measure tool length and diameter, detect tool wear and breakage automatically

  • Tool condition monitoring, tool geometry update


Technology of TTC200 CNC Tool Height Setter System


  • TTC200 can not only measure tool length, but also tool diameter

  • The position of the tool setter pillar can be roughly and precisely adjusted by the connecting link of the pillar and the adjusting link of the tool setter for mounting.

  • Rotating tools can be checked without wear to the tool or stylus.

Video Display of TTC200 Cable Tool Setter System
