RPS-L11M Radio Probe System

RPS-L11M radio probe system contains TP200 touch probe, RPDM transceiver, RSI-20M receiver and standard measuring software, applied in lathe probe, multi-tasking machines probe and turning machine probe. The RPDM is a radio frequency probe designed to be turret-mounted for part setting and inspection on turning centres. RPS-L11M radio probe system is for workpiece inspection and job set-up on multi-tasking machines, lathes and turning machines.

  • RPS-L11M Radio Probe System
  • RPS-L11M Radio Probe System
  • RPS-L11M Radio Probe System
  • RPS-L11M Radio Probe System
  • RPS-L11M Radio Probe System
  • RPS-L11M Radio Probe System

RPS-L11M radio probe system contains TP200 touch probe, RPDM transceiver, RSI-20M receiver and standard measuring software, applied in lathe probe, multi-tasking machines probe and turning machine probe. The RPDM is a radio frequency probe designed to be turret-mounted for part setting and inspection on turning centres. RPS-L11M radio probe system is for workpiece inspection and job set-up on multi-tasking machines, lathes and turning machines.

RPS-L11M Radio Probe System


TP200+RPDM:


Measuring direction

±X,±Y,+Z

Arbitrary direction swinging angle

X-Y±15°, Z +5 mm

Repeatability (2σ)

≤ 2 μm;

Trigger force in Z direction

600±30(g)

Trigger force in X-Y direction

50-100(g)

Radio signal receiving/sending distance

>14m

Model of the standard stylus

M4-P50-RB6-S36

Model of the battery

14250,3.6 (V), 2 Pcs

Seal grade

IP68



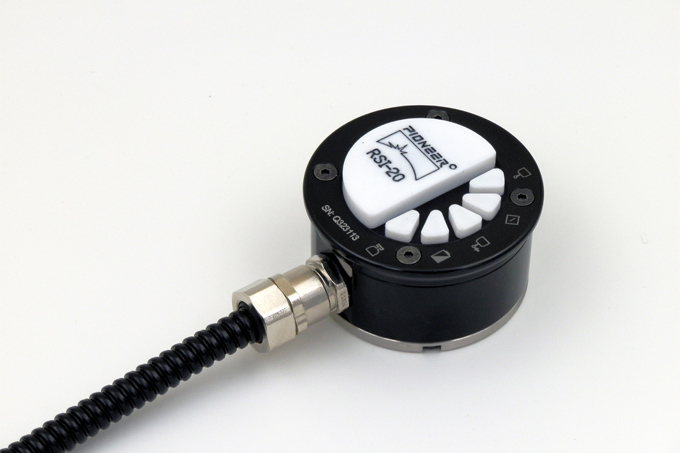

RSI-20M


Radio signal receiving/sending distance

>14m

Frequency of the radio signal

2.4-2.483G

Quantity of the radio channel

16

Input voltage

24±10% VDC

Output load current

50mA

Length of the cable

8m

Length of the cable retaining tube

2m

Seal grade

IP68

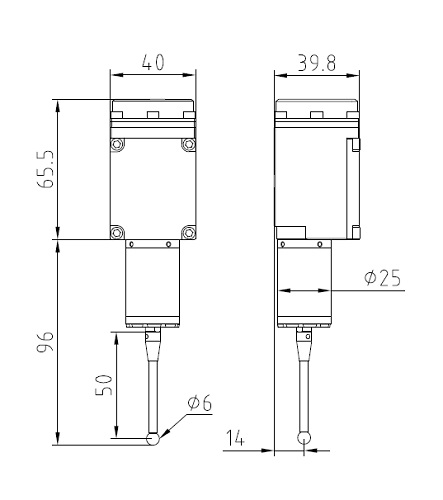

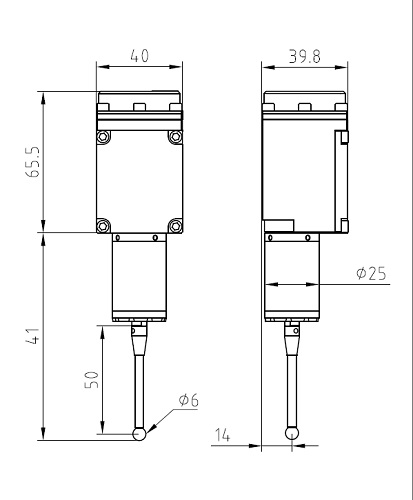

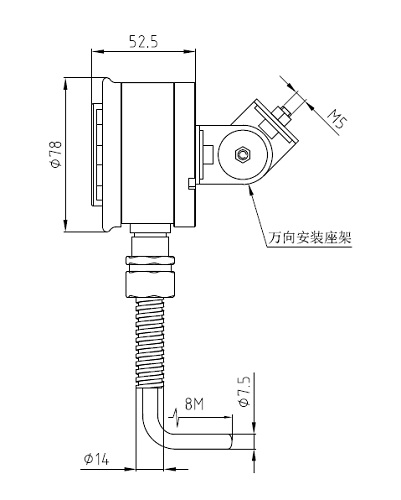

Drawing of RPS-L11M Radio Probe System


RPS-L11M Radio Probe SystemRPS-L11M Radio Probe System

RPS-L11M Radio Probe SystemRPS-L11M Radio Probe System


Application of RPS-L11M Radio Probe System

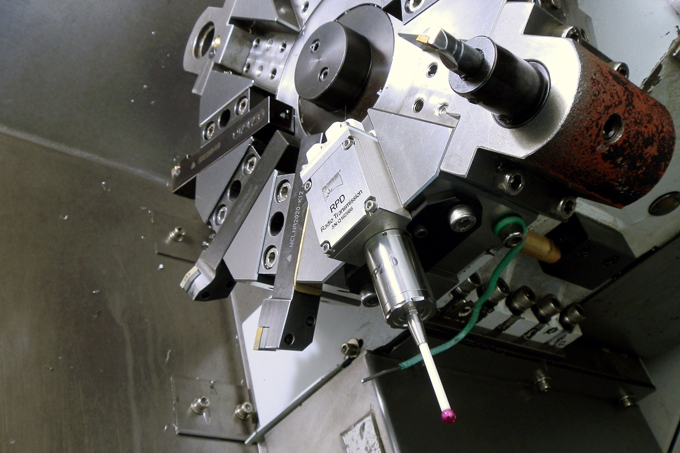

  • RPS-L11 is for workpiece inspection and job set-up on multi-tasking machines and lathes.

  • PRS-L11 often used in turning machine to measure workpiece and set datum point.

  • It provide automated on-machine measurement of component position and alignment. Set up faster, improve quality and reduce scrap.



Technical Characteristics of RPS-L11M Radio Probe System


  • The stylus connector of TP200 probe is protected by a metal cover and a rubber seal cover;

  • Switch on/off method of RPD/RPDM radio signal emitter: M code on/off;

  • Radio code signals are used to transmit information between RPD/RPDM radio signal emitter and the receiver. The time to transmit and to decode a group of signals is less than 1ms;

  • Globally recognised 2.4 GHz waveband – compliant with radio regulations in all major markets.

  • The RSI-20 receiver out put trigger、error、probe batteries low and output pulse four kinds of signals. And it's logical state can change normally closed and normally open.

  • The indicating lights in RSI-20 and RPDM show the working status of the probe system
