EP40 Electrical Probe

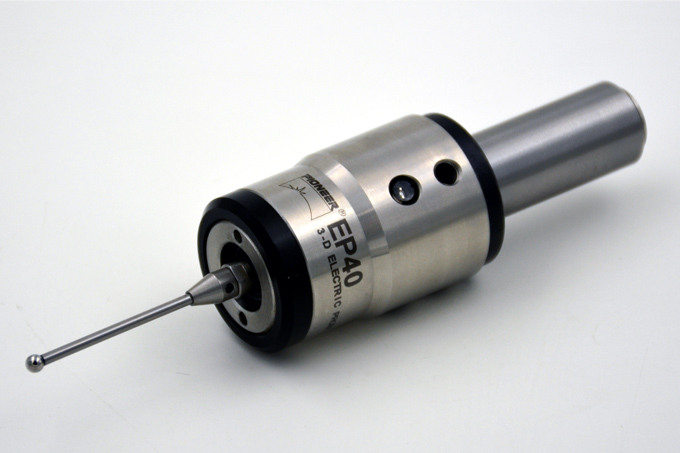

EP40 electric probe includes a electric probe unit and a 20mm diameter cylindrical shank. It senses the contact with the metal workpiece through its conductivity,when the stylus touches the surface, the LED indicator lights up. It used to check work pieces of all kinds of solid materials with electrical conductivity.

  • EP40 Electrical Probe
  • EP40 Electrical Probe
  • EP40 Electrical Probe
  • EP40 Electrical Probe
  • EP40 Electrical Probe
  • EP40 Electrical Probe

EP40 electric probe includes a electric probe unit and a 20mm diameter cylindrical shank. It senses the contact with the metal workpiece through its conductivity,when the stylus touches the surface, the LED indicator lights up. It used to check work pieces of all kinds of solid materials with electrical conductivity.

Parameter of EP40 Electrical Probe


EP40:


Measuring direction

±X,±Y,+Z

Arbitrary direction swinging angle

X-Y±12°, Z +5 mm

Repeatability (2σ)

≤ 2 μm;

Trigger force in Z direction

1000(g)

Trigger force in X-Y direction

65-130(g)

Battery model

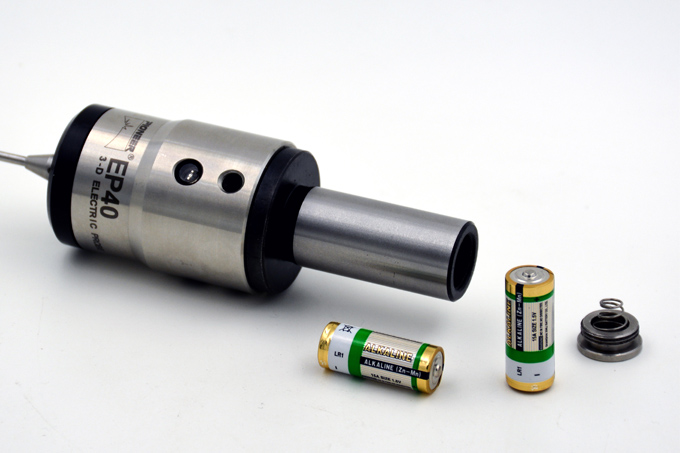

LR1, 1.5V, 700 mAh.

Model of the standard stylus

M4-P50-RB6-S36

Seal grade

IP68

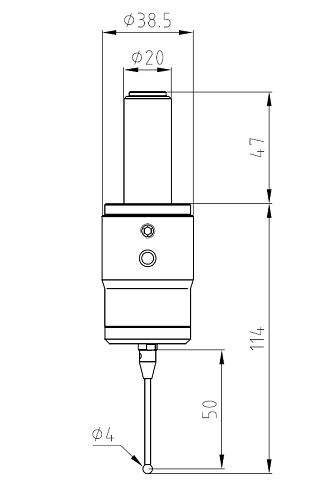

Drawing of EP40 Electrical Probe


EP40 Electrical Probe


Application of EP40 Electrical Probe

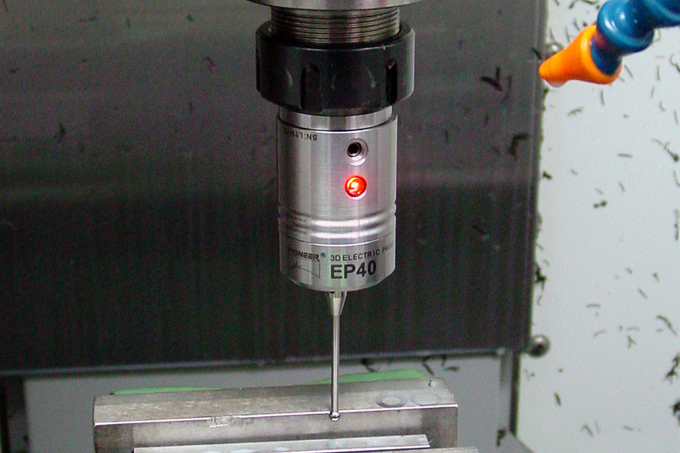

  • EP40 is used to measure solid workpieces with conductive properties; such as aluminum workpiece, stainless steel workpiece.

  • Direct measurement of steps, slots, external features, and contours of workpiece datum surfaces or edges.

  • EP40 straight shank can used with different kinds of taper shank in different kinds of machine tools.


Technical Characteristics of EP40 Electrical Probe

  • With wireless design, it does not hinder the movement of the machine tool and is easy to install

  • Three LED indicator lights are used to show the trigger state of the probe.

  • EP40 with a straight shank, size is smaller.
