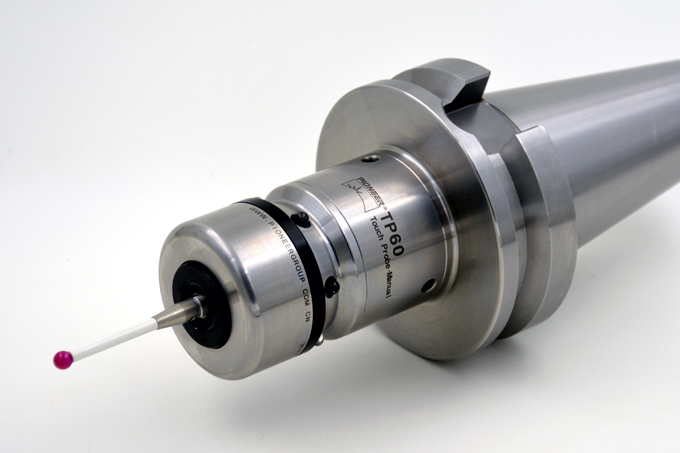

TP60 Touch Trigger Probe

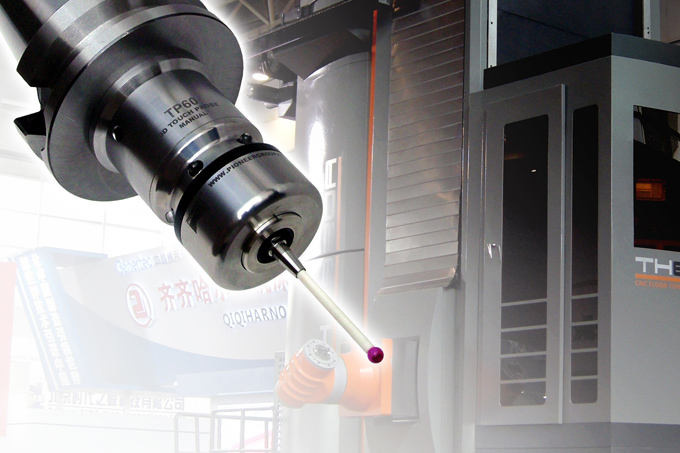

TP60 trigger probe includes a trigger probe unit and a taper shank. TP60 probe is a trigger probe, it can used to measure all kinds of solid materials workpieces. TP60 trigger probe is suitable for various specifications of machine centers, CNC boring and milling machines, and drilling-tapping machine centers, etc.

  • TP60 Touch Trigger Probe
  • TP60 Touch Trigger Probe
  • TP60 Touch Trigger Probe
  • TP60 Touch Trigger Probe
  • TP60 Touch Trigger Probe
  • TP60 Touch Trigger Probe

TP60 trigger probe includes a trigger probe unit and a taper shank. TP60 probe is a trigger probe, it can used to measure all kinds of solid materials workpieces. TP60 trigger probe is suitable for various specifications of machine centers, CNC boring and milling machines, and drilling-tapping machine centers, etc.

Parameter of TP60 Touch Trigger Probe


TP60:


Measuring direction

±X,±Y,+Z

Arbitrary direction swinging angle

X-Y±12°, Z +5 mm

Repeatability (2σ)

≤ 2 μm;

Trigger force in Z direction

1000(g)

Trigger force in X-Y direction

65-130(g)

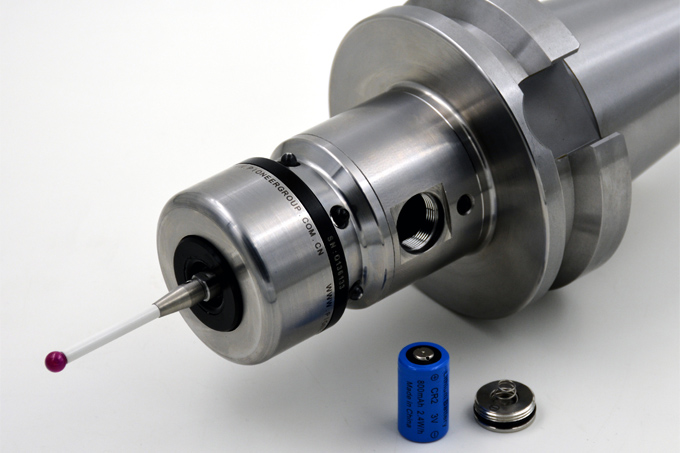

Battery model

CR2, 3.0 V, 800 mAh

Model of the standard stylus

M4-P50-RB6-S36

Seal grade

IP68

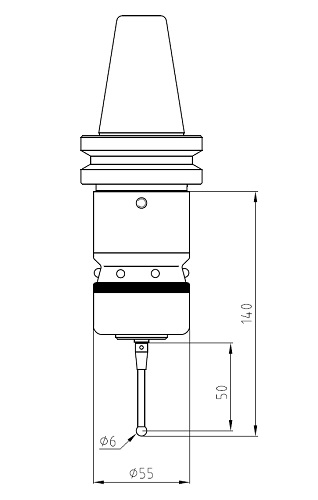

Drawing of TP60 Touch Trigger Probe


TP60 Touch Trigger Probe


Application of TP60 Touch Trigger Probe


  • TP60 probe can be used in various of milling machine,machine center,boring machine and so on.

  • TP60 can be used on non-conductive workpieces (resin, ceramics, etc.) and non-conductive machine tools (ceramic bearings, etc.)

  • TP60 is suitable for workpiece alignment and simple inspection operations.


Technical Characteristics of TP60 Touch Trigger Probe


  • Can be configured with different specifications of taper shank.

  • The coaxial of probe and shank can be adjusted (the factory precision: ≤5 μm);

  • Six LED indicator lights are used to show the trigger state of the probe.
