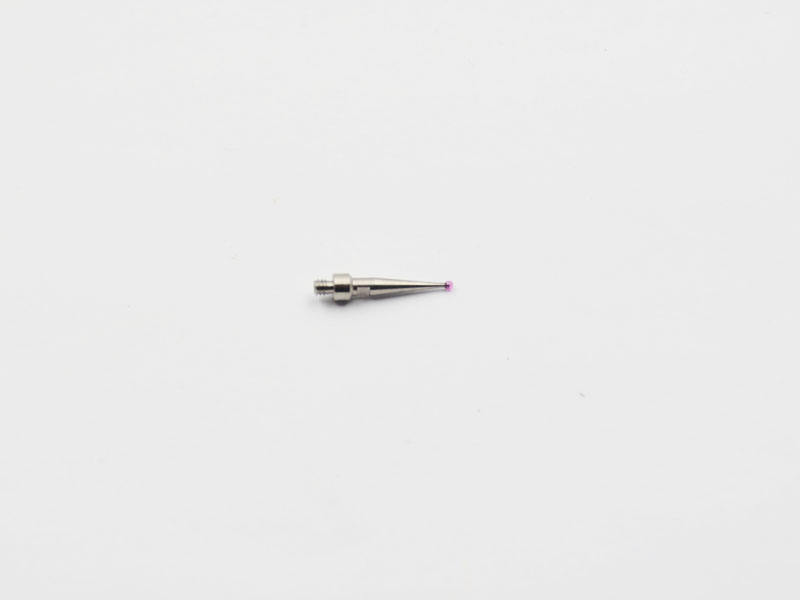

M2 Screw Probe Stylus

M2 screw probe CMM stylus usually used for industry-standard coordinate measuring machine probes. The M2 screw probe CMM stylus  has many different types, varying in size and material. The material of M2 screw probe CMM stylus has stainless steel, tungsten carbide,ceramic and carbon fiber. The following shows some of the M2 screw probe CMM stylus. You can download our stylus brochure or contact us to get more information.

  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus
  • M2 Screw Probe Stylus

M2 screw probe CMM stylus usually used for industry-standard coordinate measuring machine probes. The M2 screw probe CMM stylus  has many different types, varying in size and material. The material of M2 screw probe CMM stylus has stainless steel, tungsten carbide,ceramic and carbon fiber. The following shows some of the M2 screw probe CMM stylus. You can download our stylus brochure or contact us to get more information.

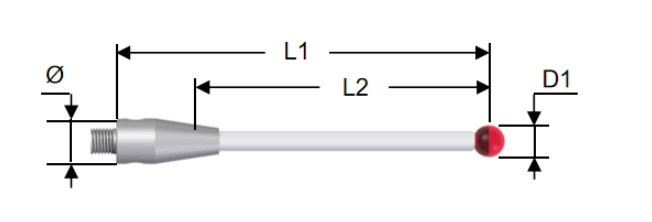

L1  Overall length

L2  Effective working length

D1  Ball diameter

Ø =3mm(M2)


Overall length L1

It is measured from the rear mounting face of the stylus to the centre of the ball.

Effective working length L2

This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.



Straight Styli:



Name

Part number

Ball dia.

mm(in.)

Ball material

Length

L1 mm(in.)

Stem material

EWL*

L2 mm(in.)

M2-S10-RB1-S4.5

S-20-002

1.0(0.04)

Ruby

10.0(0.39)

Stainless steel

4.5(0.18)

M2-S10-RB2-S6

S-20-006

2.0(0.08)

Ruby

10.0(0.39)

Stainless steel

6.0(0.24)

M2-S10-RB3-S7.5

S-20-010

3.0(0.12)

Ruby

10.0(0.39)

Stainless steel

10.0(0.39)

M2-C10-RB0.5-S3.0

S-20-052

0.5(0.02)

Ruby

10.0(0.39)

Tungsten carbide

3.0(0.12)

M2-C10-RB1-S4.0

S-20-056

1.0(0.04)

Ruby

10.0(0.39)

Tungsten carbide

4.0(0.16)

M2-C20-RB0.5-S7

S-20-065

0.5(0.02)

Ruby

20.0(0.79)

Tungsten carbide

7.0(0.28)

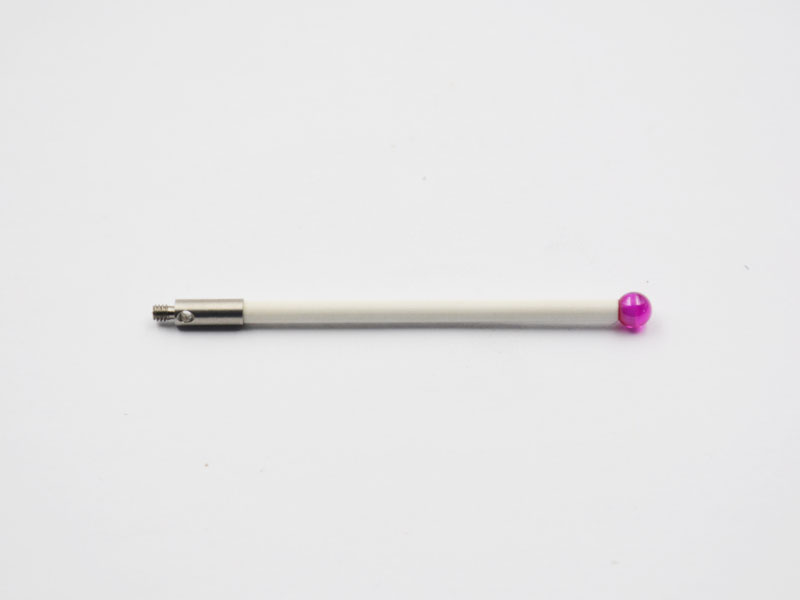

M2-P30-RB3-S27.5

S-20-120

3.0(0.12)

Ruby

30.0(1.18)

Ceramic

27.5(1.08)

M2-P30-RB4-S30

S-20-122

4.0(0.16)

Ruby

30.0(1.18)

Ceramic

30.0(1.18)

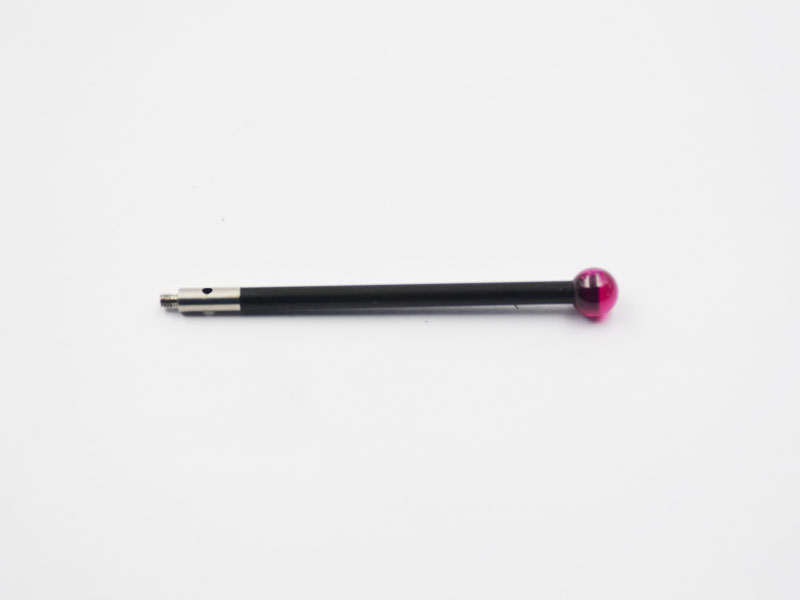

M2-F30-RB4-S30

S-20-135

4.0(0.16)

Ruby

30.0(1.18)

Carbon fiber

30.0(1.18)

M2-F30-RB5-S30

S-20-137

5.0(0.2)

Ruby

30.0(1.18)

Carbon fiber

30.0(1.18)

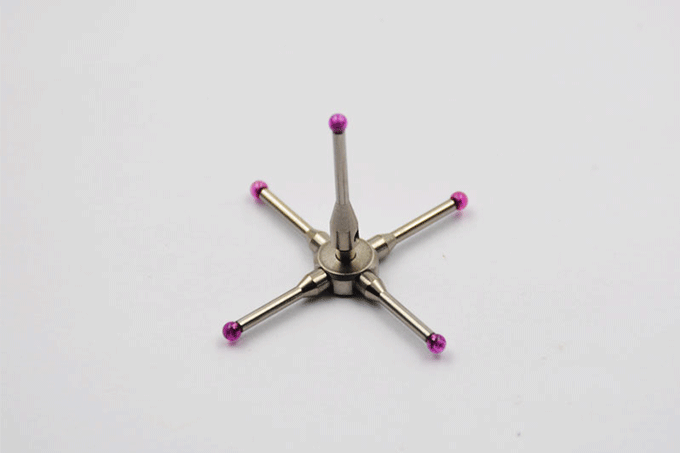

Star Styli:



Name

Part number

Ball dia.

mm(in.)

Ball material

Length

L1 mm(in.)

Stem material

EWL*

L2 mm(in.)

M2-C10-RB1-TS4

S-21-130

1.0(0.04)

Ruby

10.0(0.39)

Tungsten carbide

4.0(0.16)

M2-C20-RB1-TS11

S-21-134

1.0(0.04)

Ruby

20.0(0.79)

Tungsten carbide

11.0(0.43)

M2-C20-RB2-TS12

S-21-136

2.0(0.08)

Ruby

20.0(0.79)

Tungsten carbide

12.0(0.47)

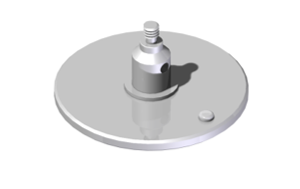

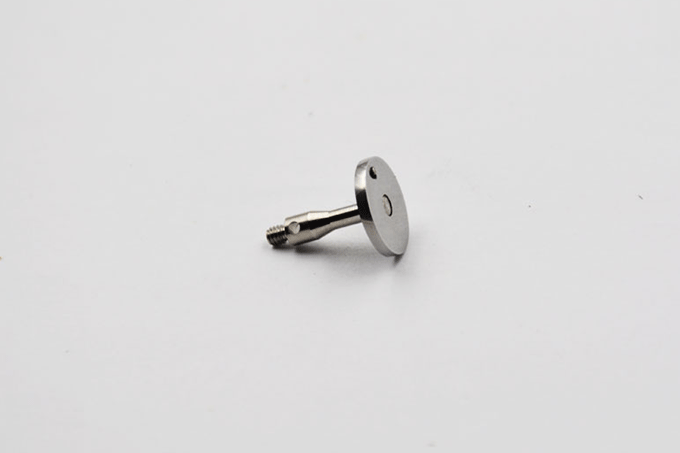

Disc Styli:



Name

Part number

Ball dia.

mm(in.)

Ball material

Length

L1 mm(in.)

Stem material

EWL*

L2 mm(in.)

M2-S10-RD6-S1.2

S-22-100

6.0(0.24)

Ruby

10.0(0.39)

Stainless steel

1.2(0.05)

M2-S8.6-SD18-S1.6

S-22-110

18.0(0.71)

Bearing steel

8.6(0.34)

Bearing steel

1.6(0.06)

M2-S8.6-SD25-S1.6

S-22-120

25.0(0.98)

Bearing steel

8.6(0.34)

Bearing steel

1.6(0.06)

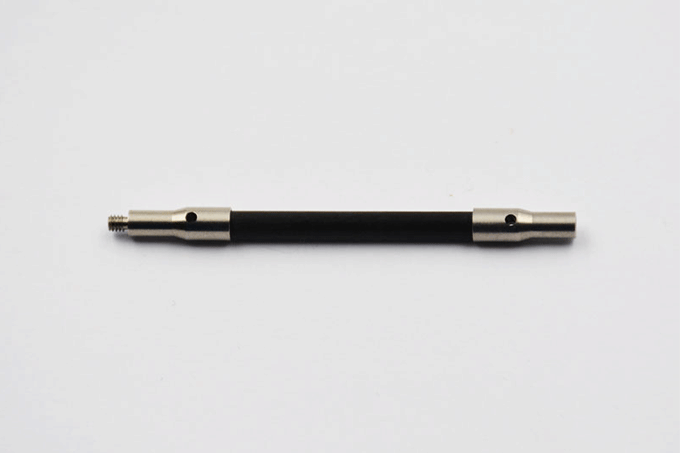

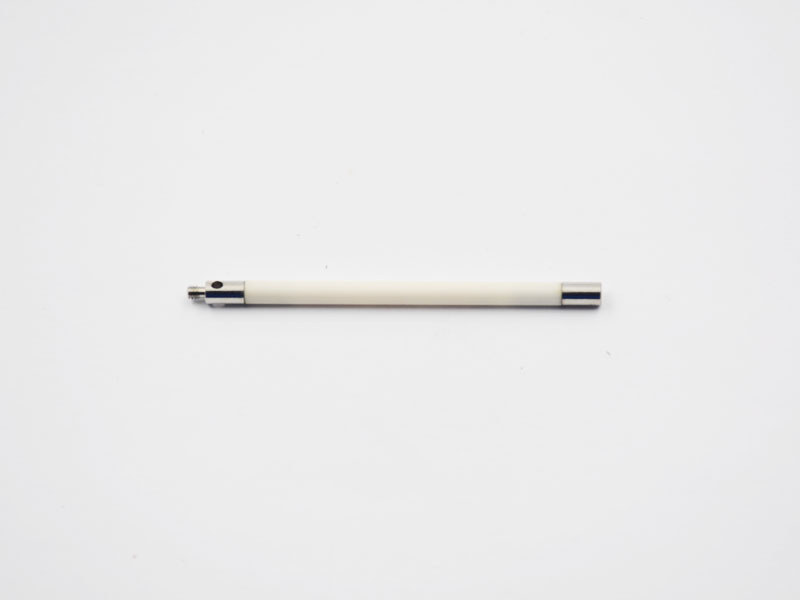

Stylus Extensions:


Name

Part number

Length

L1 mm(in.)

Stem material

M2-S20-000-E3

S-25-110

20.0(0.79)

Stainless steel

M2-S30-000-E3

S-25-115

30.0(1.18)

Stainless steel

M2-S40-000-E3

S-25-120

40.0(1.57)

Stainless steel

M2-P30-000-E3

S-25-125

30.0(1.18)

Ceramic
