M4 Screw Probe Stylus

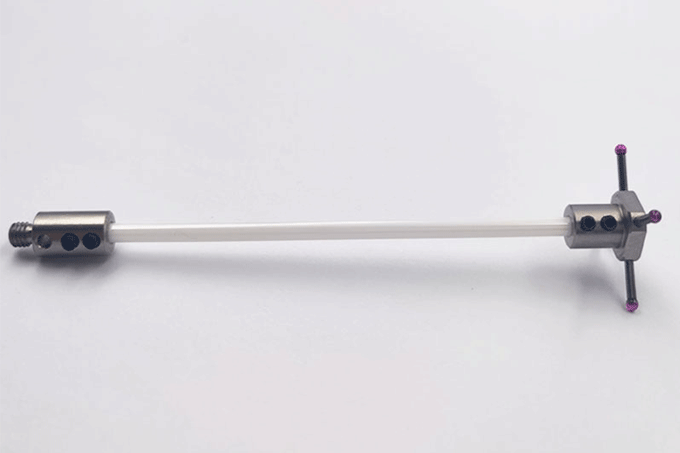

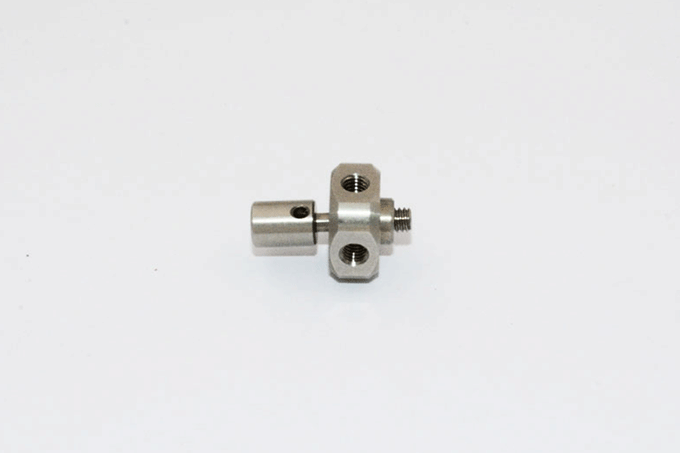

M4 screw stylus is usually used for the high-precision probes and the special probes of the company's various series of machine tools.The M4 screw stylus range comprise many different types, varying in size and material. We have straight styli, star styli, disc styli, cylinder styli and so on. The following shows some of the M4 screw stylus. You can download our pioneer stylus brochure or contact us to get more information.

  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus
  • M4 Screw Probe Stylus

M4 screw stylus is usually used for the high-precision probes and the special probes of the company's various series of machine tools.The M4 screw stylus range comprise many different types, varying in size and material. We have straight styli, star styli, disc styli, cylinder styli and so on. The following shows some of the M4 screw stylus. You can download our pioneer stylus brochure or contact us to get more information.

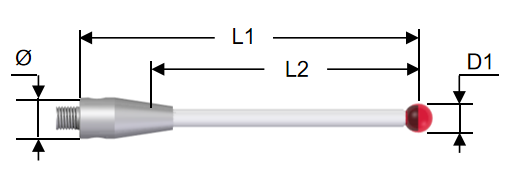

L1  Overall length

L2  Effective working length

D1  Ball diameter

Ø =4mm(M3)


Overall length L1

It is measured from the rear mounting face of the stylus to the centre of the ball.

Effective working length L2

This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.

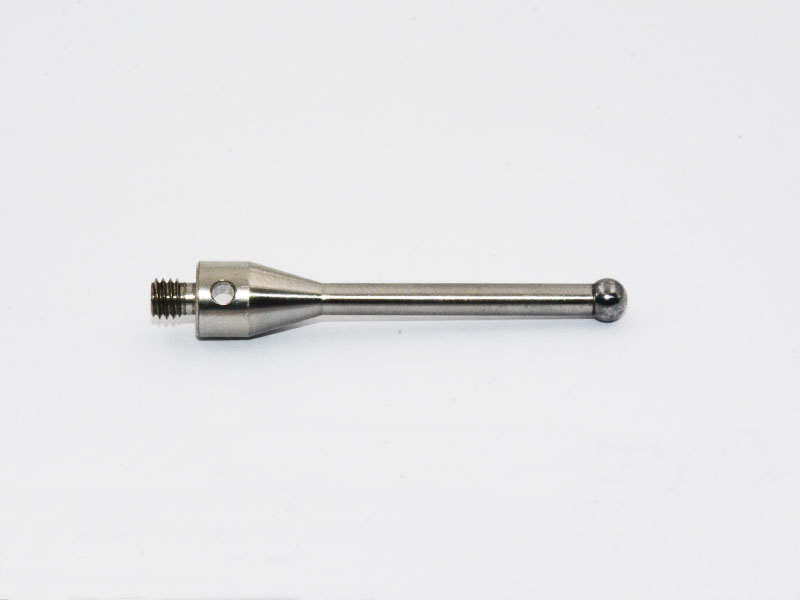

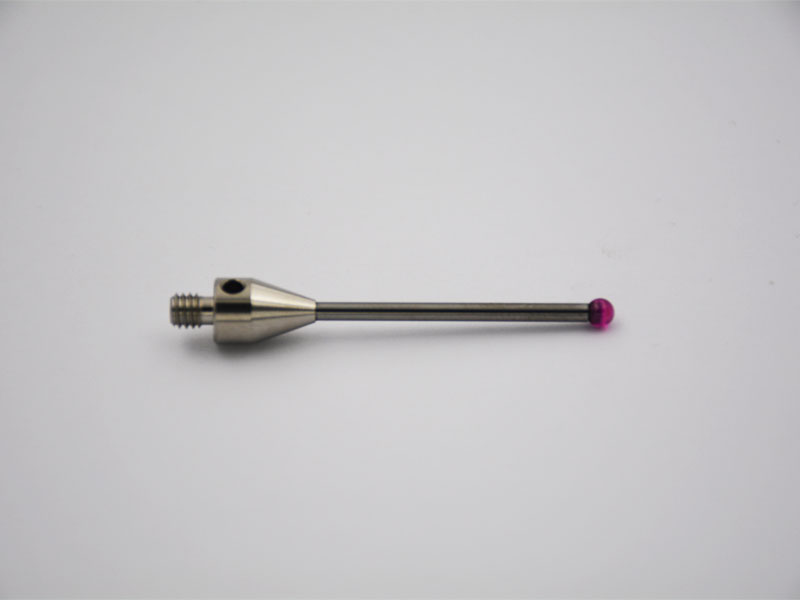

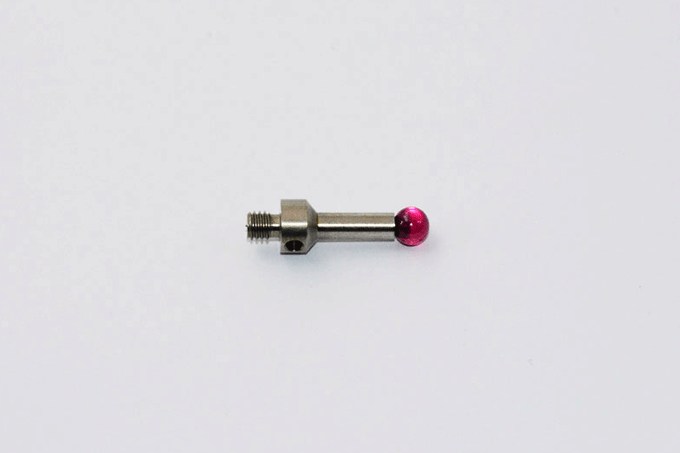

Straight Styli:



Name

Part

number

Ball dia.

mm(in.)

Ball

material

Length

L1 mm(in.)

Stem material

EWL*

L2 mm(in.)

M4-P50-RB5-S34

S-40-173

5.0(0.2)


Ruby


50.0(1.97)


Ceramic


34.0(1.34)

M4-P50-RB6-S36

S-40-179

6.0(0.24)

Ruby


50.0(1.97)


Ceramic

36.0(1.42)

M4-C20-RB1-S10

S-40-141

1.0(0.04)


Ruby


20.0(0.79)


Tungsten carbide

10.0(0.39)

M4-C40-RB3-S30

S-40-151

3.0(0.12)


Ruby


40.0(1.57)


Tungsten carbide

30.0(1.18)

M4-C50-RB3-S38

S-40-198

3.0(0.12)


Ruby


50.0(1.97)


Tungsten carbide

38.0(1.5)

M4-S10.5-RB5-S5.5

S-40-103

5.0(0.2)


Ruby


10.5(0.41)


Stainless steel

5.5(0.22)

M4-S20-RB5-S16

S-40-123

5.0(0.2)


Ruby


20.0(0.79)


Stainless steel

16.0(0.63)

M4-F50-RB6-S36

S-40-176

6.0(0.24)


Ruby


50.0(1.97)


Carbon fiber

36.0(1.42)

M4-F100-RB6-S86

S-40-255

6.0(0.24)


Ruby


100.0(3.94)


Carbon fiber

86.0(3.39)

M4-S55-SB3-S25

S-40-623

3.0(0.12)


Bearing steel

55.0(2.17)


Stainless steel

25.0(0.98)

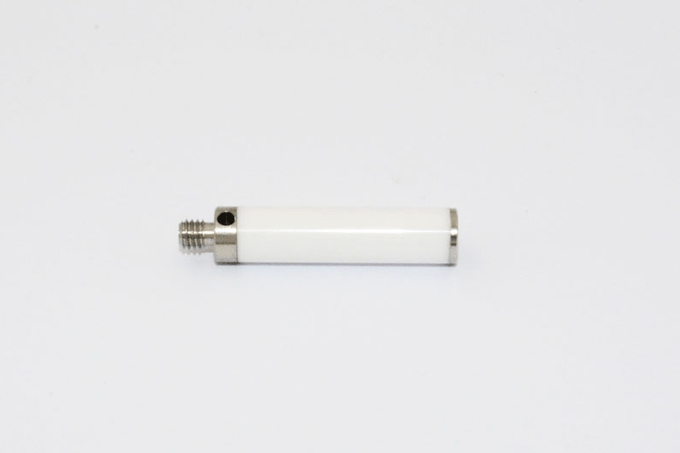

Stylus Extensions:


Name

Part number

Length

L1 mm(in.)

Stem material

M4-S10-000-E7

S-45-003

10.0(0.39)

Stainless steel

M4-S15-000-E7

S-45-005

15.0(0.59)

Stainless steel

M4-S30-000-E7

S-45-009

30.0(1.18)

Stainless steel

M4-P30-000-E7

S-45-025

30.0(1.18)

Ceramic

M4-P50-000-E7

S-45-028

50.0(1.97)

Ceramic

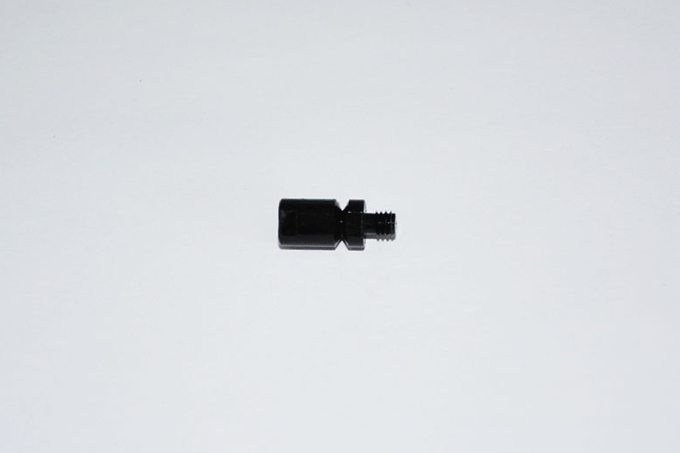

Crash Protection Devices:



Part number

S-11-001

S-11-002

S-11-003

S-11-005

S-11-006

S-11-012

S-11-015

S-11-010

Length mm(in.)

6.0(0.24)

8.0(0.32)

8.0(0.32)

12.0(0.48)

15.2(0.60)

13.5(0.53)

19.0(0.75)

22.3(0.88)



Disc Styli:
